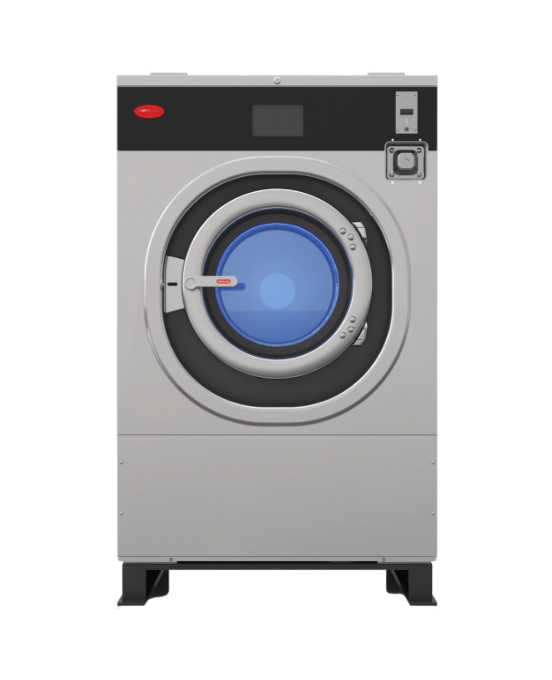

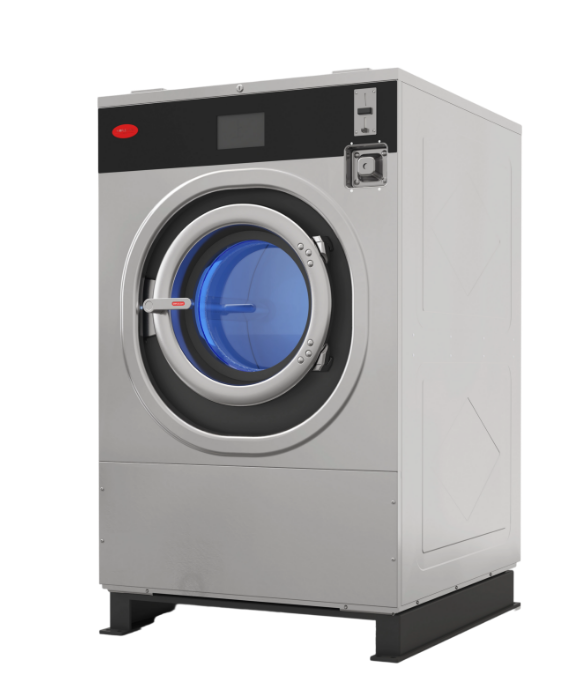

22KG Soft Mount High Spin Washer Extractor–EC/22FW
- Semi-automated laundry improves the working speed and efficiency of employees in laundry factory.
- Keep textile clean in cruise liner, make your customer enjoy the clean tidy living environment.
- All washer install UV light help to kill bacteria, especially in Inn, B&B, Hostel, Resort, Guest House, Capsule Hotel.
Send E-mail
Chat now
- Application
- Feature
- Technical Parameters
-
- Inquiry
Application
- Semi-automated laundry improves the working speed and efficiency of employees in laundry factory.
- Keep textile clean in cruise liner, make your customer enjoy the clean tidy living environment.
- All washer install UV light help to kill bacteria, especially in Inn, B&B, Hostel, Resort, Guest House, Capsule Hotel.
Feature
- Double safety door lock system ensures safe operation and minimizes the risk of accidents.
- Honeycomb structure of inner drum can reach more working efficiency and washing quality.
- High spinning speed can reach to 330G-factor that removes more water to reduce drying time and save energy, and bolting down is not required.
- Automatic water mixer, which means mixing hot and cold water to a precise temperature with the programmed water level, save energy and reduce wash cycle time.
- Manufactured in stainless steel tub, drum, top, front and side panels, which gives better elegant look and provides better quality.
- Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.
- Multiple language options is easier for common user.
- Touch screen and button type controller are both available for customer choice.
- Self-developed software App and remote control system is more convenient for self-service laundry owner and user.
SOFT MOUNT WASHER
| Model |
EC/12FW |
EC/16FW |
EC/22FW |
EC/27FW |
| Drum |
| Loading Capacity( Kg) |
12 |
15 |
20 |
25 |
| Diameter (mm) |
635 |
635 |
740 |
740 |
| Depth(mm) |
365 |
465 |
450 |
550 |
| Speed |
| Washing Speed ( rpm) |
32 |
32 |
32 |
32 |
| Mid spinning speed(rpm) |
420 |
420 |
420 |
420 |
| High spinning speed(rpm) |
1000 |
1000 |
900 |
900 |
| G-Force |
363 |
363 |
343 |
343 |
| Power |
| Motor( kw) |
1.85 |
2.2 |
3 |
3.7 |
| Heating (kw) Electric heated |
2*4 |
3*4 |
4*4 |
5*4 |
| Connections |
| Water inlet(inch) |
3/4 |
3/4 |
3/4 |
3/4 |
| Drain diameter(inch) |
3 |
3 |
3 |
3 |
| Heating way |
| Electricity |
| Outside hot water |
| OPL |
