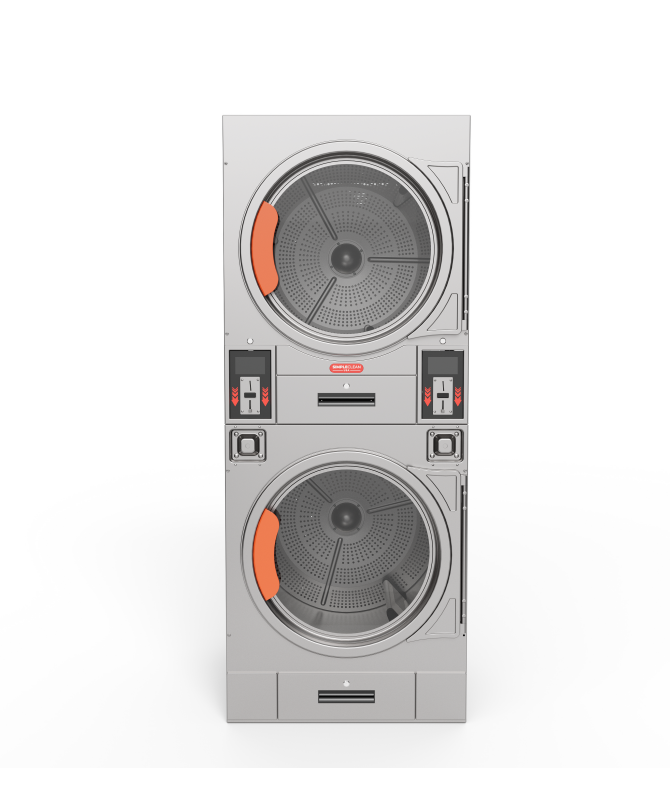

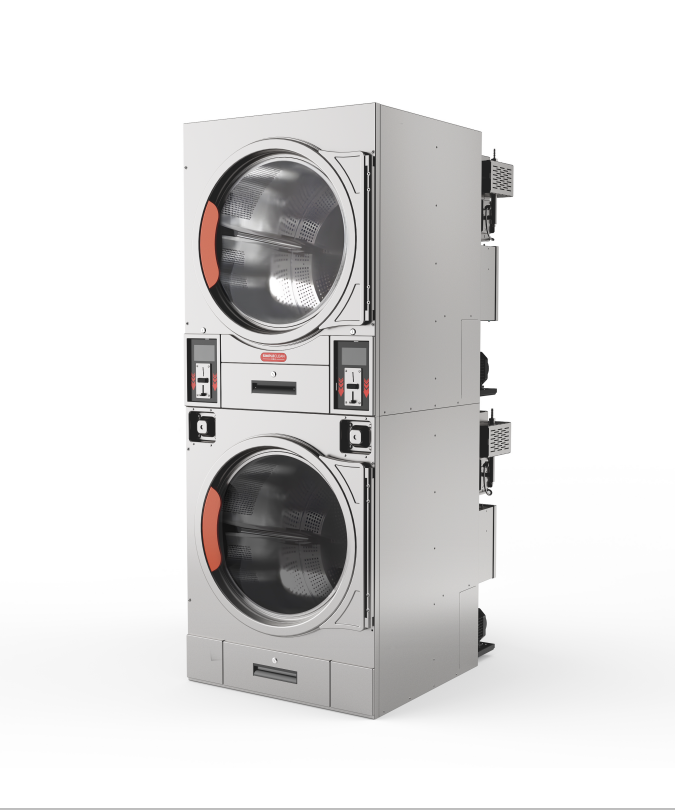

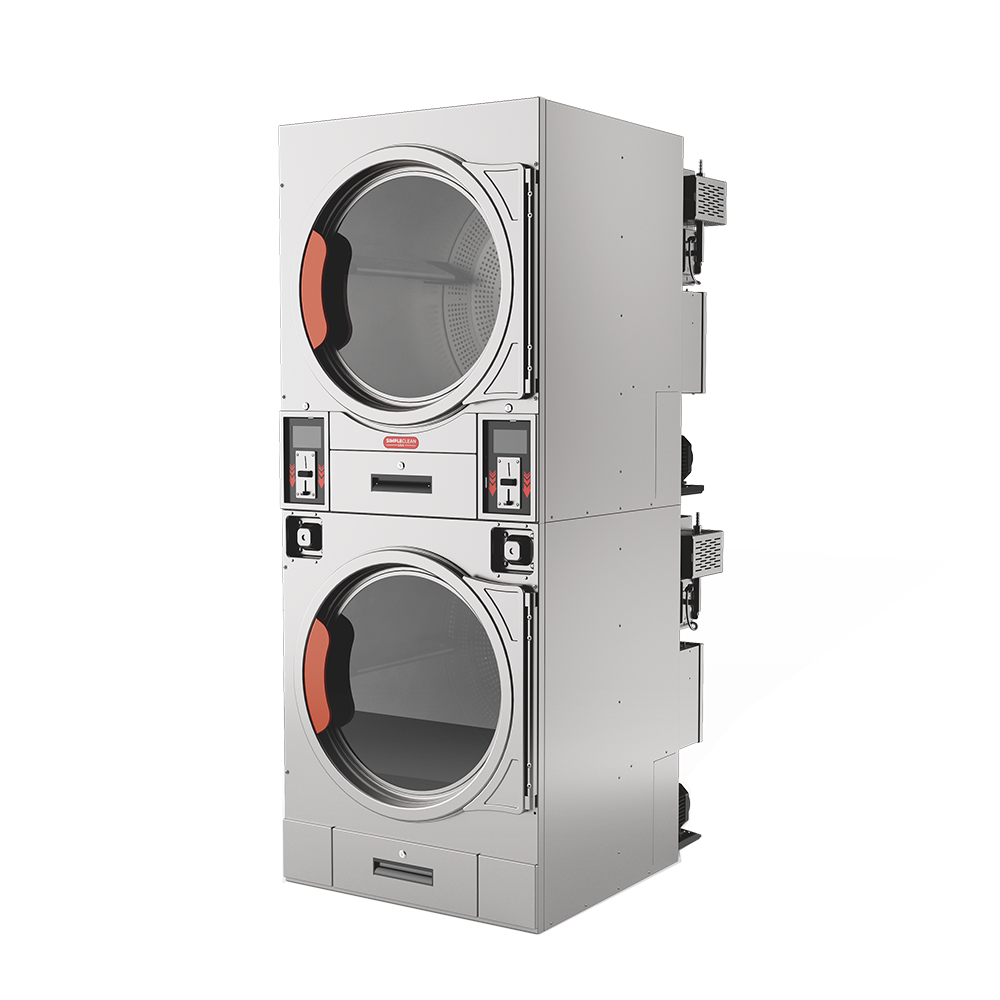

22KG Stack Tumble Dryer–EC/22DD

  • Stack type become more popular in single outlet or a huge chain laundromat, it save more space and more strong. Higher durability and higher profitability help you be your own boss.
  • One dryer has 3 set edit program and 36lb and 44lb capacity available for your reference, there's no doubt that you'll find the ideal washer/dryer combine unit appliance for your laundromat.

Send E-mail Chat now

  • Application
  • Feature
  • Technical Parameters
  • Inquiry

Application

  • Stack type become more popular in single outlet or a huge chain laundromat, it save more space and more strong. Higher durability and higher profitability help you be your own boss.
  •  One dryer has 3 set edit program and 36lb and 44lb capacity available for your reference, there’s no doubt that you’ll find the ideal washer/dryer combine unit appliance for your laundromat.
  • Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.

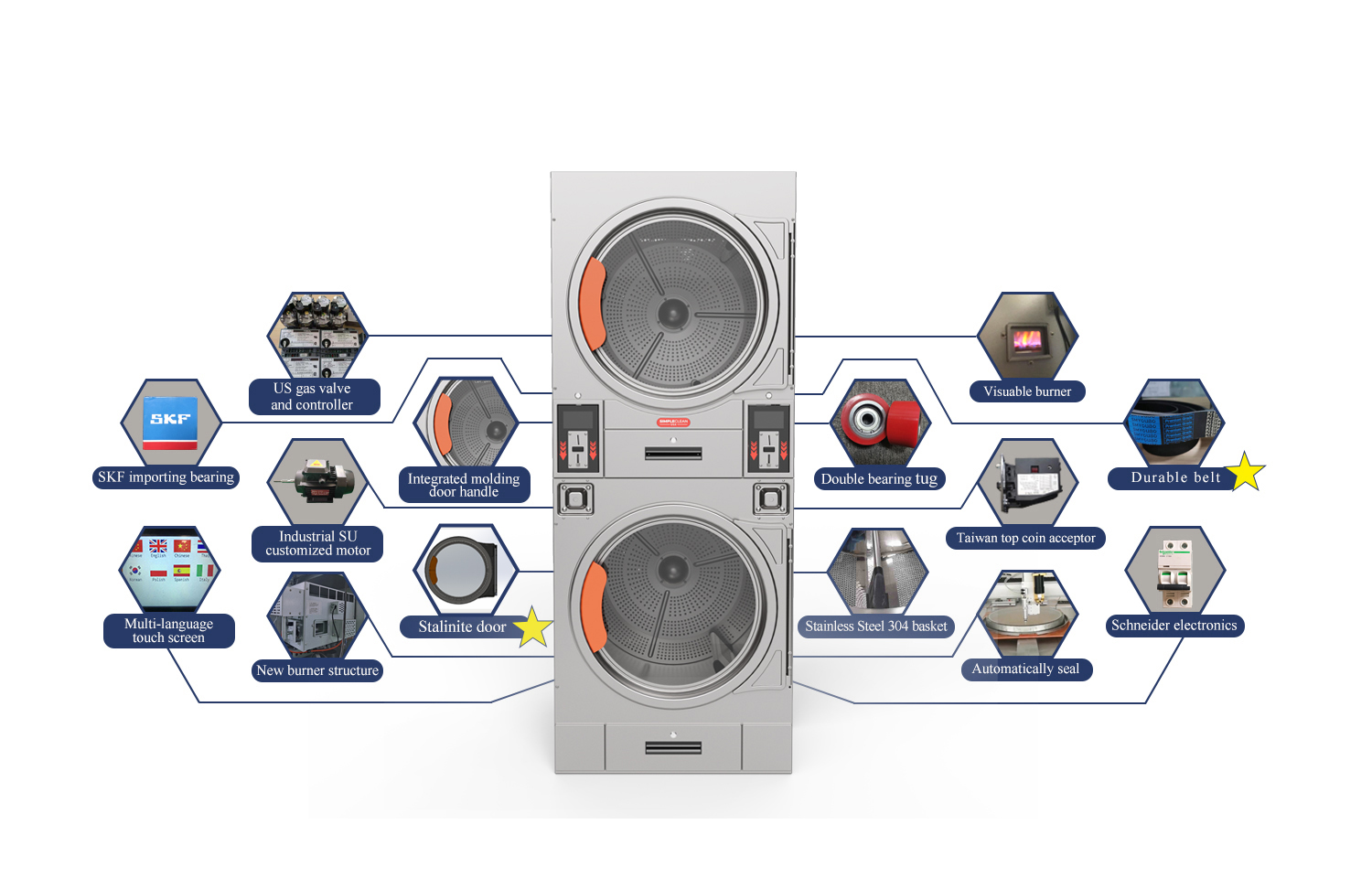

Feature

  • The dryer is manufactured in stainless steel tub, drum, top, front and side panels, which gives better elegant look and provides better quality.
  • The dryer is equipped with heavy duty frame, bearing, shaft to reduce wear and tear greatly.
  • The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.
  • Honeycomb structure of inner drum can reach more working efficiency and drying quality.
  • Large door opening is convenient for loading and unloading.
  • Multiple heating way is available for different environments use.
  • Large and easy lint collector simplifies clean up.
  • Touch screen and button type controller are both available for customer choice.
  • Stack type not only save more space but the cost of one unit tends to be less than the cumulative cost of an individual washer and dryer, making them a great choice for budget-conscious laundromat owners.

STACK TUMBLE DRYER

Model EC/12DD EC/16DD EC/22DD EC/27DD
Drum
Loading Capacity( L-Kg) 28lbs ( 13kg) 35lbs ( 16kg) 48.4lbs(22kg) 59.4lbs(27kg)
Volume (L) 635*650 745*655 855*660 965*665
Power
Main Motor( kw) 0.25*2 0.25*2 0.75*2 0.75*2
Fan motor (kw) 0.37*2 0.37*2 0.75*2 0.75*2
Heating (kw) Electric heated 10.3*2 10.3*2 13.5*2 13.5*2
Gas Consumption/H 0.6kg*2 0.8kg*2 1kg*2 1.3kg*2
CFM (Btu/H) 55000*2 75000*2 95000*2 115000*2
Air Flow 800*2 800*2
Connection
Gas Inlet (inch) 1/2 1/2 1/2 1/2
Exhaust Pipe(mm) 190*2 190*2 190*2 190*2
Net dimensions
L*W*H (mm) 800×1044×2005 800×1174×2005 910×1180×2225 910×1350×2225
Net weight (kg) 278 317 356 395
Wood box dimensions
L*W*H (mm) 950×1194×2155 950×1324×2155 1060×1330×2375 1060×1500×2375
Gross Weight 308 347 386 425
Heating way
Electricity, Gas
Usage way
Coin or OPL
